ALFGLOBALS PRODUCT PORTFOLIO

Premium Systems. Technical Performance. Global Projects.

Explore premium European architectural windows, Florida/HVHZ hurricane systems, impact glazing and large-opening door solutions coordinated by ALFGLOBALS for residential, hospitality and commercial projects.

Florida / HVHZ Systems European Windows
Florida / HVHZ Impact Glass European Windows Specialty Windows Request a Quote
FLORIDA / HVHZ

Hurricane & Impact-Resistant Systems

High-performance aluminium windows, coupled assemblies, lift-and-slide doors and impact glazing solutions for demanding Florida and coastal applications.

ALFGLOBALS CS77 Hurricane Fixed Window
Florida / HVHZ

CS77 Hurricane Fixed Window

Large fixed aluminium glazing solution for broad views, daylight and high-performance coastal building envelopes.

Sizes shown 4 ft × 8 ft and 94½ × 141¾ in
Testing ASTM E1886/E1996 + TAS 201/202/203
Water Pressure 12 psf / 580 Pa
Design Pressure 65 psf / 3120 Pa
Structural 98 psf / 4680 Pa
Impact Level Large Missile D
Exact configuration, opening dimensions, glass make-up, anchorage, installation and approval documentation must be verified for the individual project.
Request a Quote Technical Review

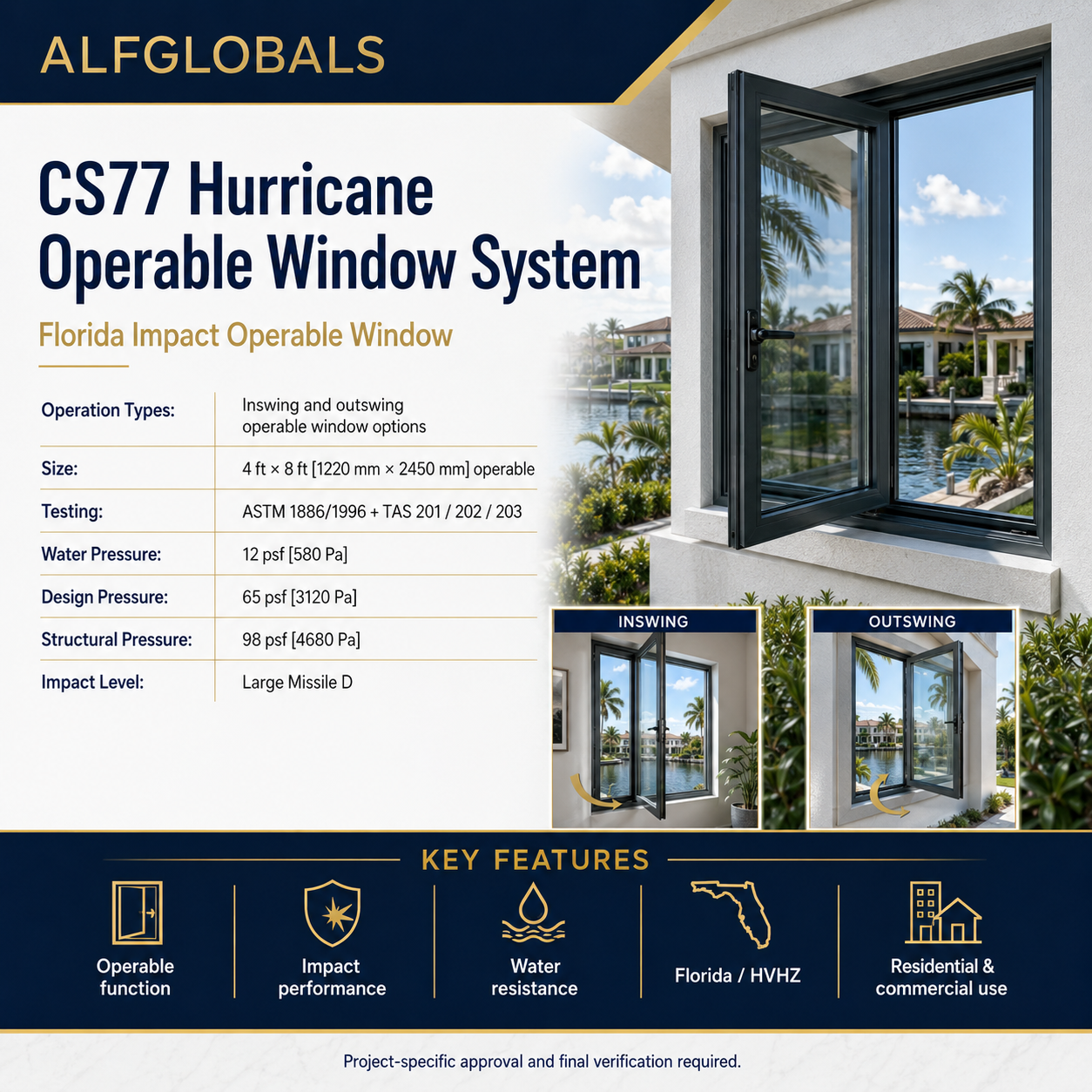

ALFGLOBALS CS77 Hurricane Operable Window
Florida / HVHZ

CS77 Hurricane Operable Window

Impact-oriented operable aluminium window supporting natural ventilation and hurricane-envelope performance.

Operation Inswing and outswing options
Reference Size 4 ft × 8 ft / 1220 × 2450 mm
Testing ASTM E1886/E1996 + TAS 201/202/203
Water Pressure 12 psf / 580 Pa
Design Pressure 65 psf
Structural 98 psf
Impact Level Large Missile D
Operation type, dimensions, glass build-up, pressure and approval route must be verified before specification.
Request a Quote

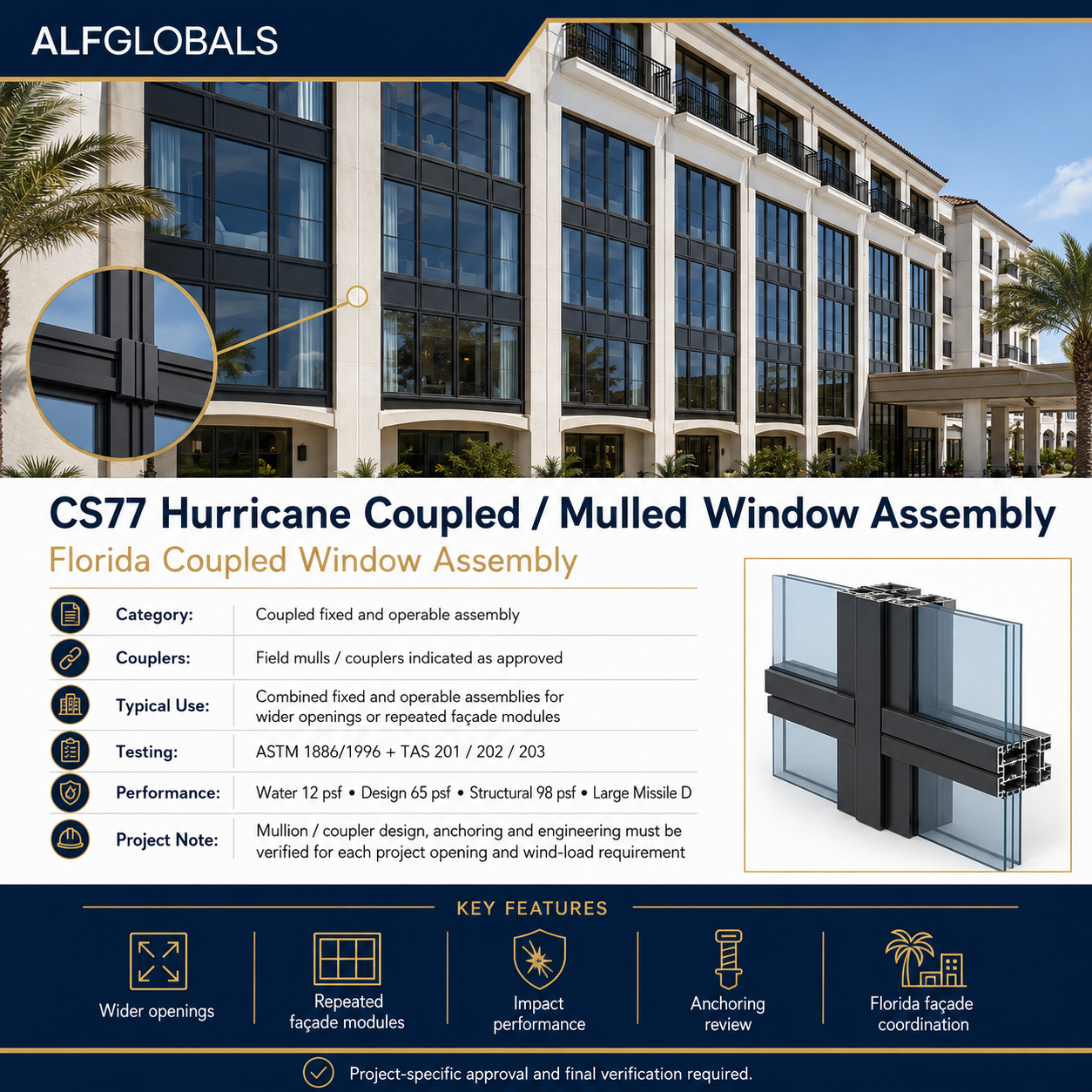

ALFGLOBALS CS77 Coupled Mulled Window Assembly
Florida / HVHZ

CS77 Coupled / Mulled Assembly

Combined fixed and operable modules for wider glazed openings and repeated architectural façade compositions.

Category Coupled fixed and operable assembly
Typical Use Wider openings / repeated façade modules
Testing ASTM E1886/E1996 + TAS 201/202/203
Water 12 psf
Design Pressure 65 psf
Structural 98 psf
Impact Large Missile D
Mullion and coupler design, structural support, anchoring and wind-load transfer require project-specific engineering review.
Request a Quote

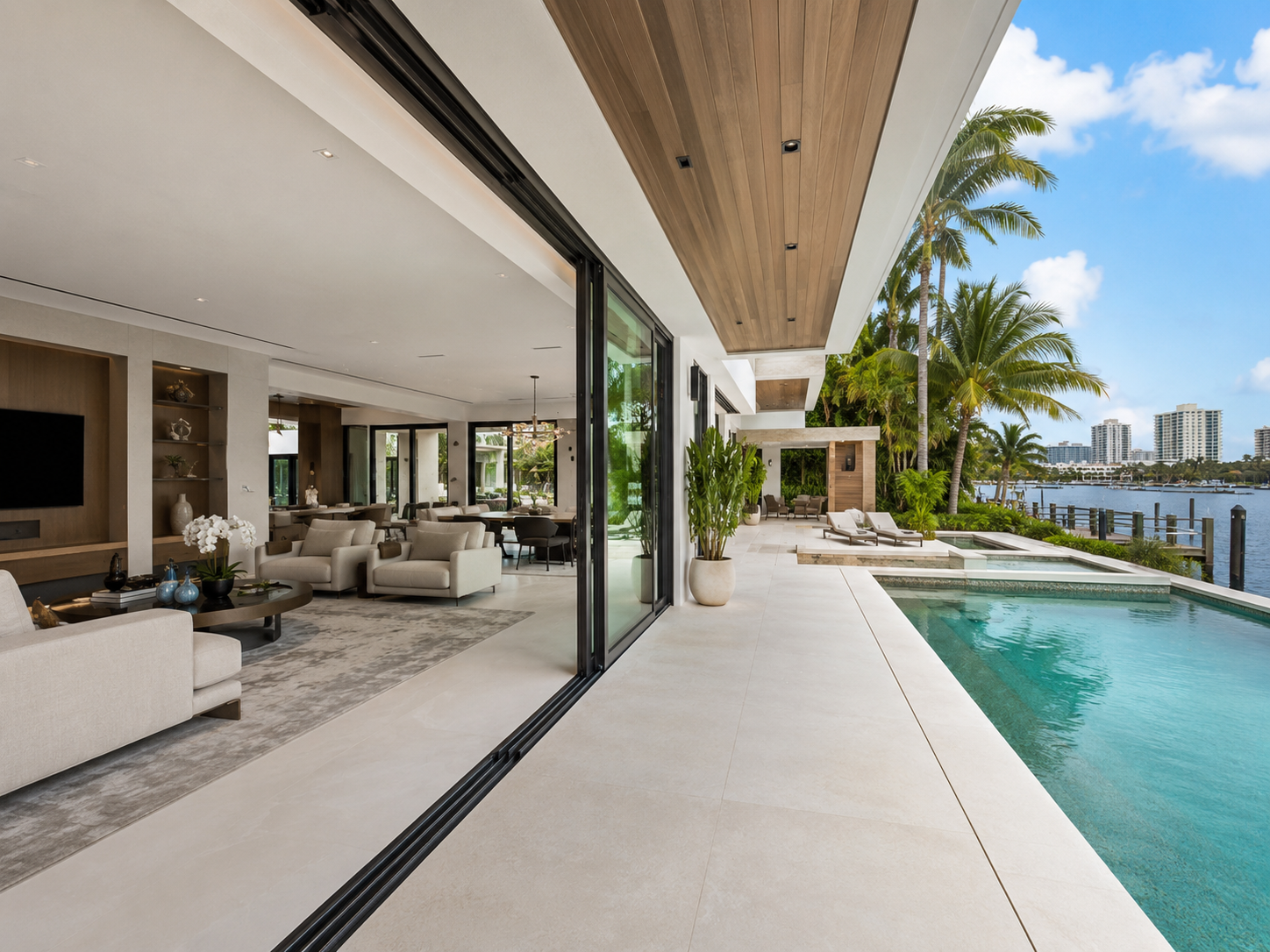

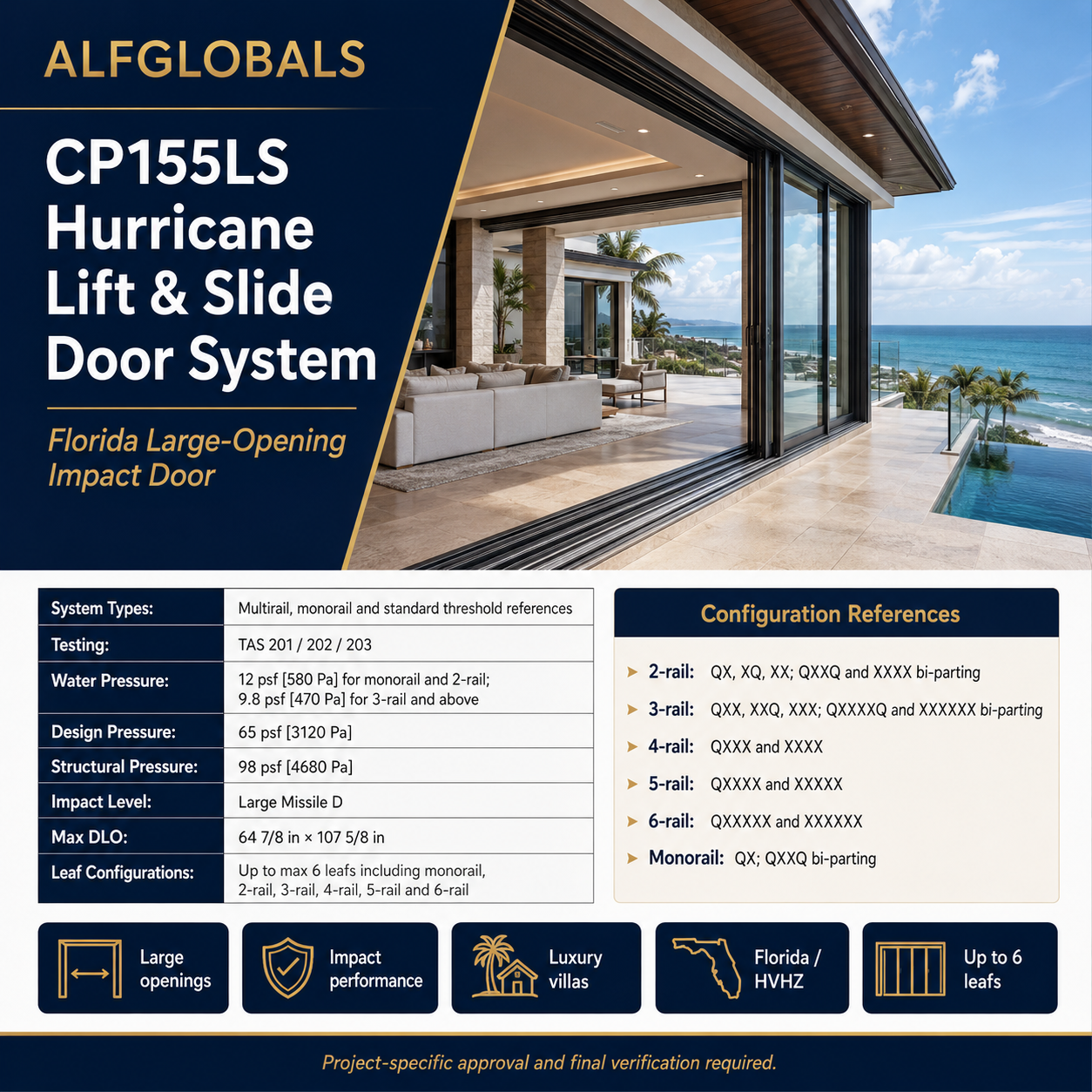

ALFGLOBALS CP155LS Hurricane Lift and Slide Door
Florida / HVHZ

CP155LS Hurricane Lift & Slide

Large-opening impact door system for premium villas, waterfront residences, hospitality and terrace applications.

System Types Multirail, monorail and standard threshold references
Testing TAS 201 / 202 / 203
Water 12 psf monorail / 2-rail
Water 3+ Rail 9.8 psf / 470 Pa
Design Pressure 65 psf / 3120 Pa
Structural 98 psf / 4680 Pa
Impact Level Large Missile D
Max DLO shown 64⅞ × 107⅝ in
Configurations Up to 6 leaves
Final rails, panel dimensions, threshold, wind pressure, glazing and approval documentation require technical review.
Request a Quote

Florida / HVHZ Technical Notice

Product suitability depends on the exact project location, jurisdiction, opening dimensions, design pressures, impact requirement, glass configuration, anchors, installation method and applicable approval documentation. ALFGLOBALS coordinates the project-specific technical review before final product confirmation.

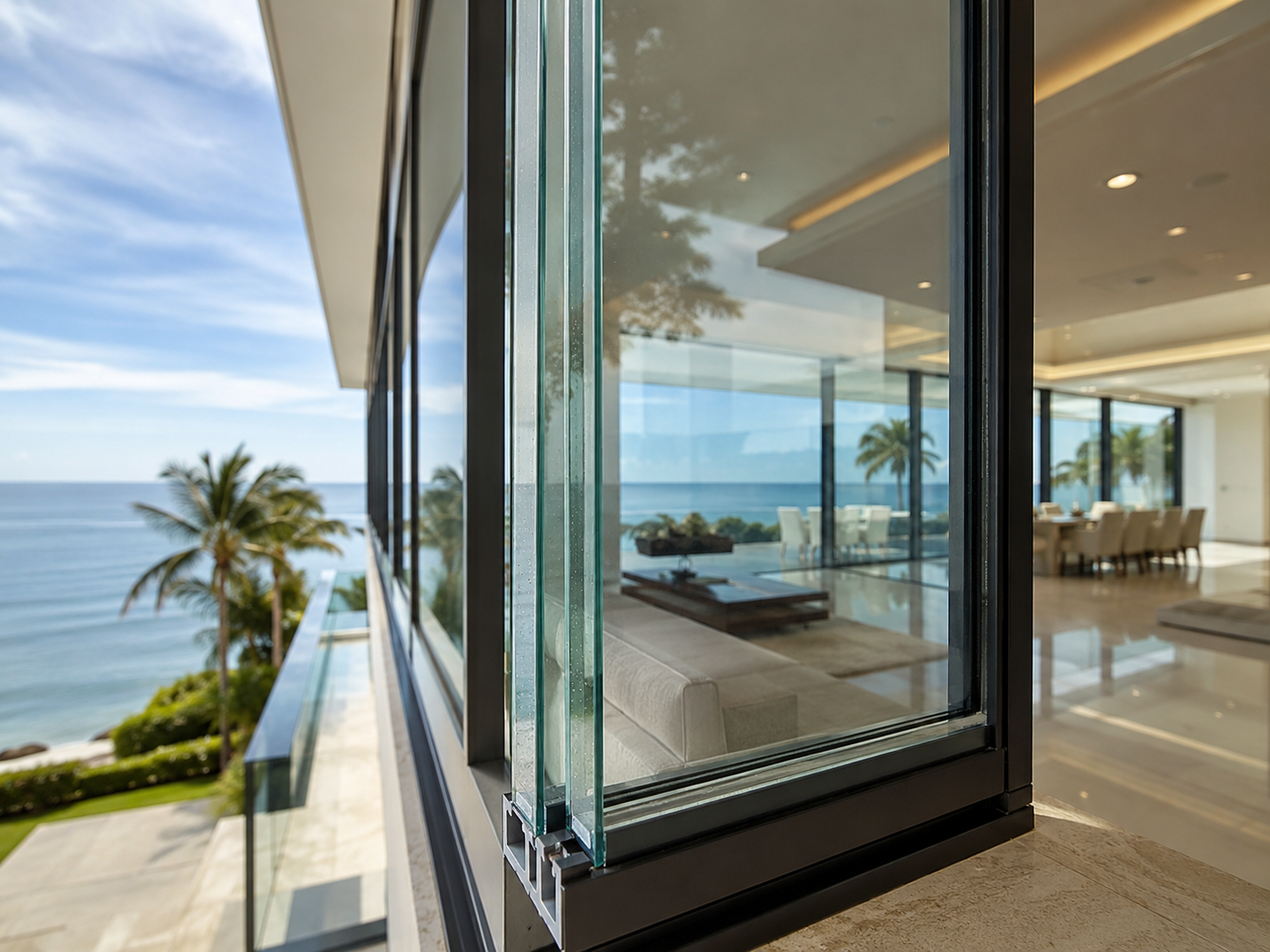

ADVANCED IMPACT GLAZING

HVHZ Impact Glass Packages

Laminated impact-glazing references using SGP interlayers for windows and large lift-and-slide openings.

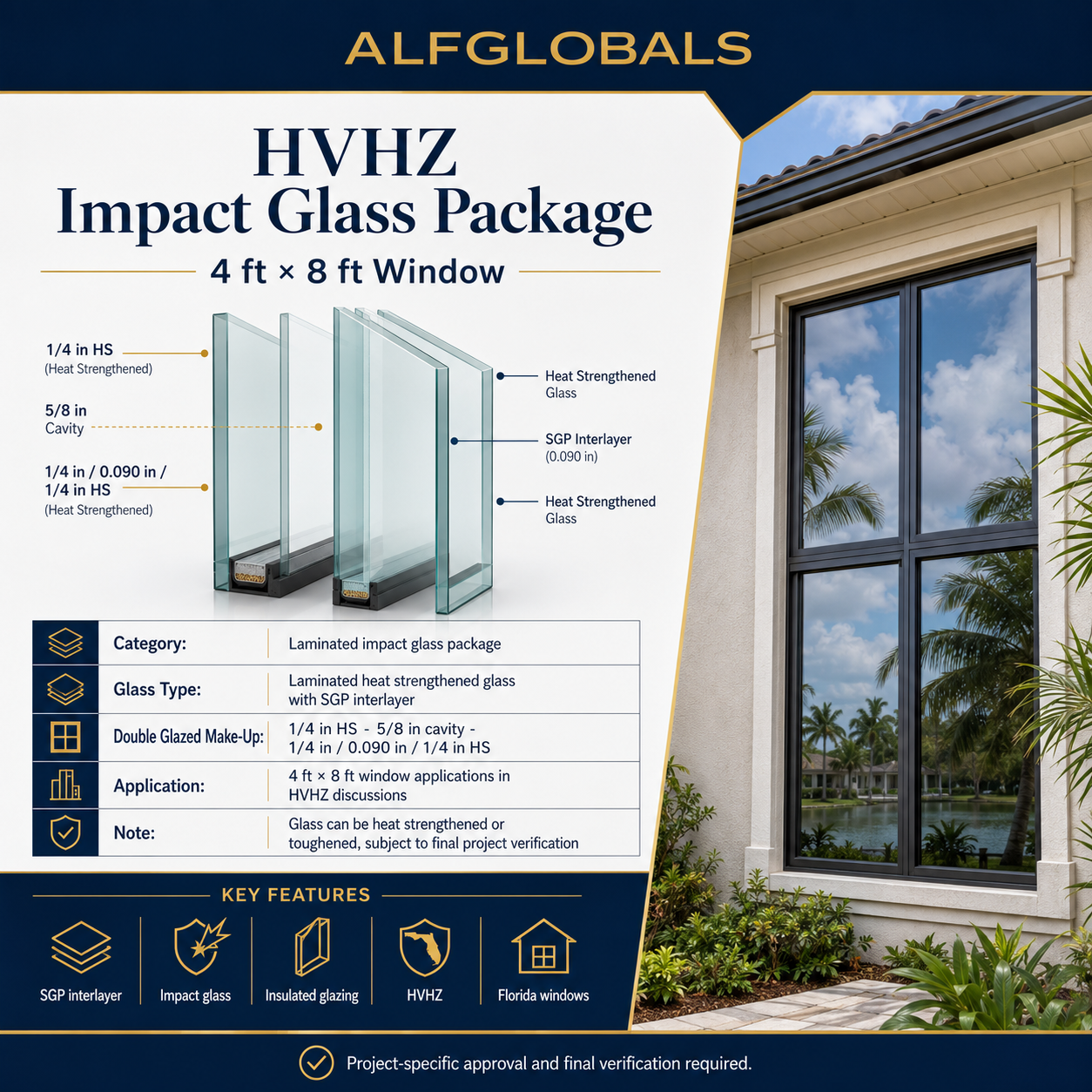

ALFGLOBALS HVHZ Impact Glass 4 by 8 Window
Impact Glazing

HVHZ Impact Glass — 4 × 8 ft Window

Glass Type Laminated heat-strengthened glass
Interlayer SGP
Make-Up ¼ in HS – ⅝ in cavity – ¼ in / 0.090 in / ¼ in HS
Application 4 ft × 8 ft window reference
Glass is only one component of the complete window assembly. Frame, anchors, sealants, glazing retention and installation must also match the approved system.
Technical Inquiry

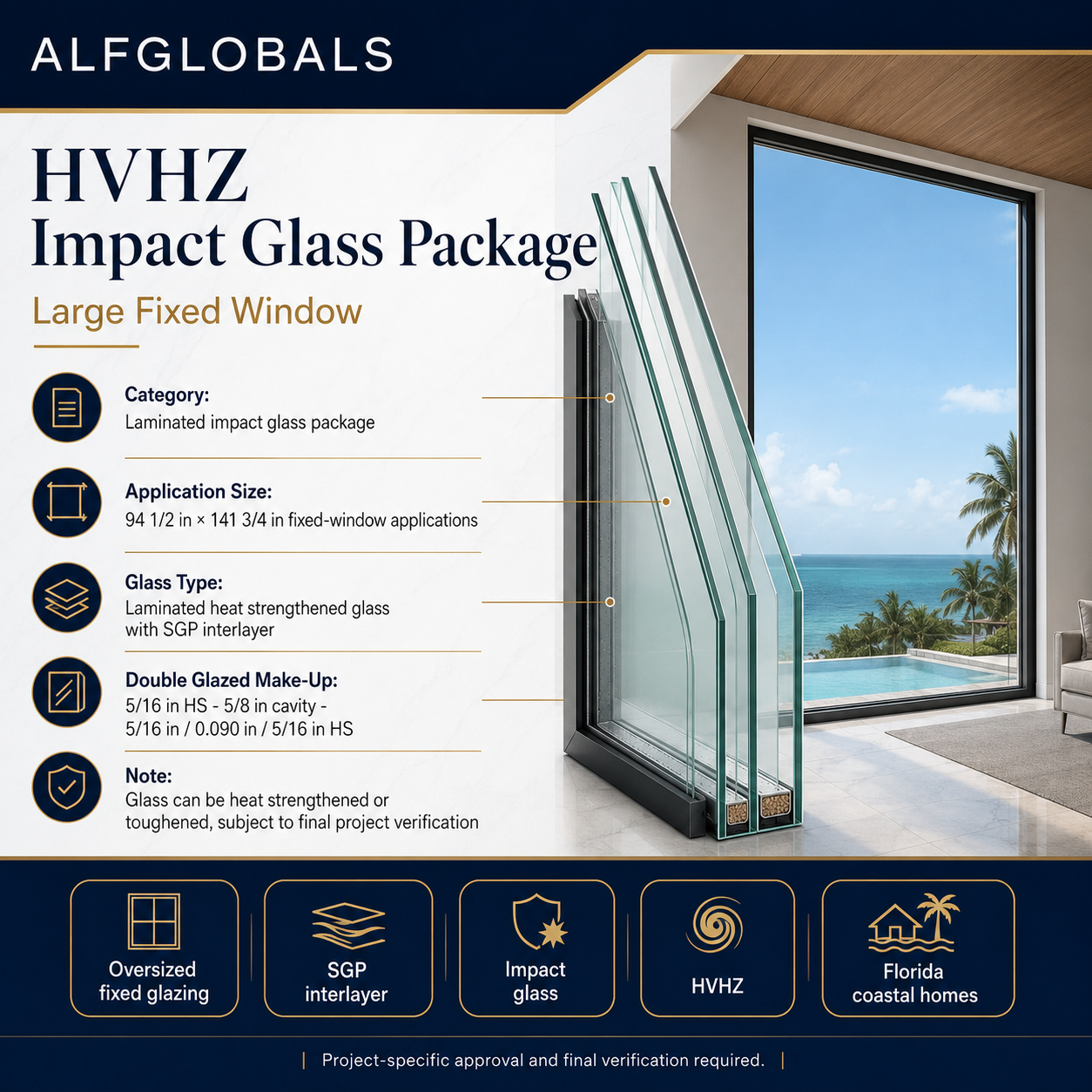

ALFGLOBALS HVHZ Large Fixed Impact Glass
Impact Glazing

HVHZ Impact Glass — Large Fixed Window

Reference Size 94½ × 141¾ in
Glass Type Laminated heat-strengthened
Interlayer SGP
Make-Up 5/16 in HS – 5/8 in cavity – 5/16 in / 0.090 in / 5/16 in HS
Oversized glazing requires verification of the complete frame, glass, pressure, anchoring and installation configuration.
Technical Inquiry

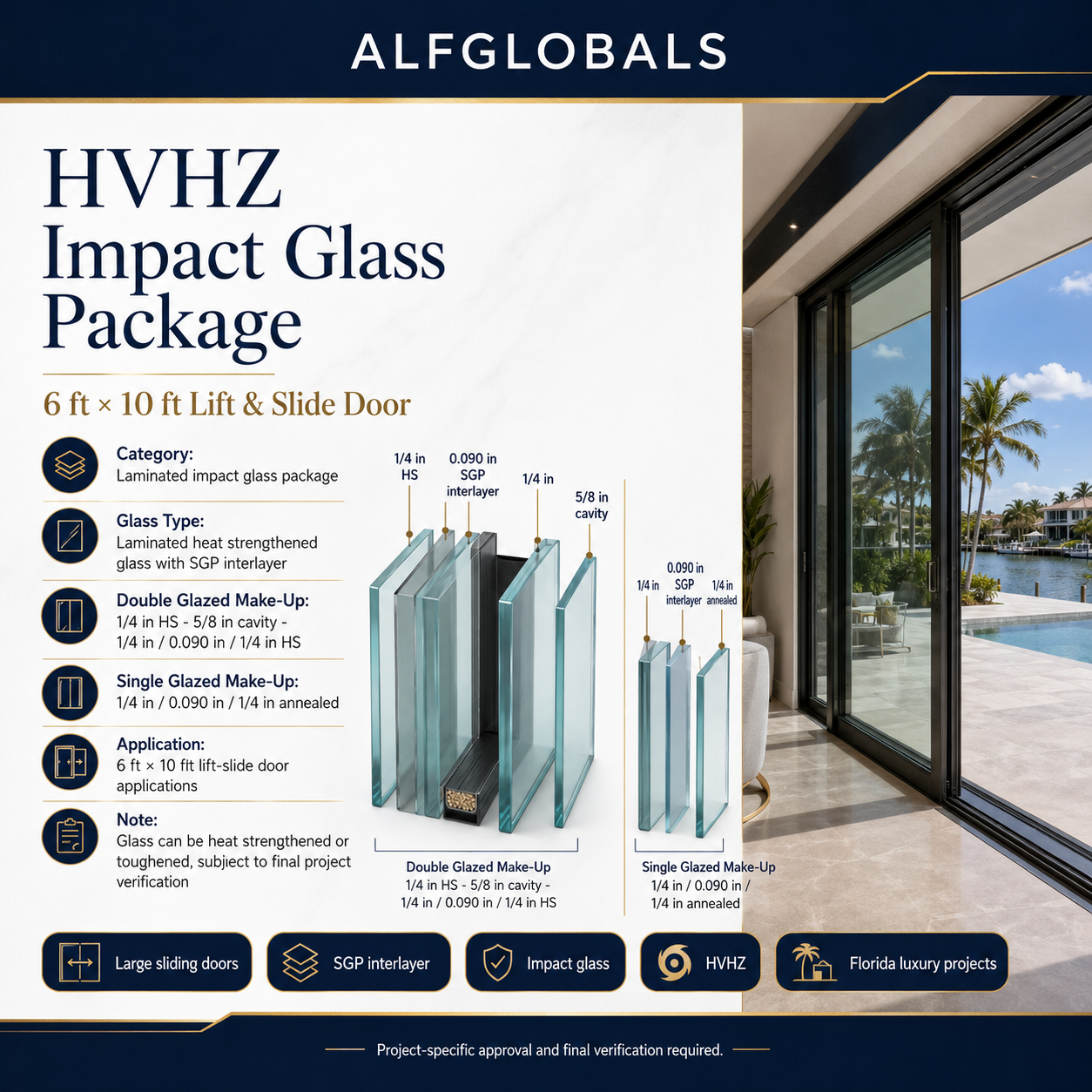

ALFGLOBALS HVHZ Lift Slide Impact Glass Package
Impact Glazing

HVHZ Impact Glass — Lift & Slide Door

Glass Type Laminated heat-strengthened + SGP
Double Glazed ¼ in HS – ⅝ in cavity – ¼ in / 0.090 in / ¼ in HS
Single Glazed ¼ in / 0.090 in / ¼ in annealed
Reference 6 ft × 10 ft lift-slide door
The complete sliding-door system must be reviewed, including tracks, rollers, drainage, thresholds, frame and anchoring.
Technical Inquiry
ENERGY GLASS / BIPV

Transparent BIPV Glass Solutions

Building-integrated photovoltaic glazing for façades, windows, roofs, skylights, canopies and other architectural applications.

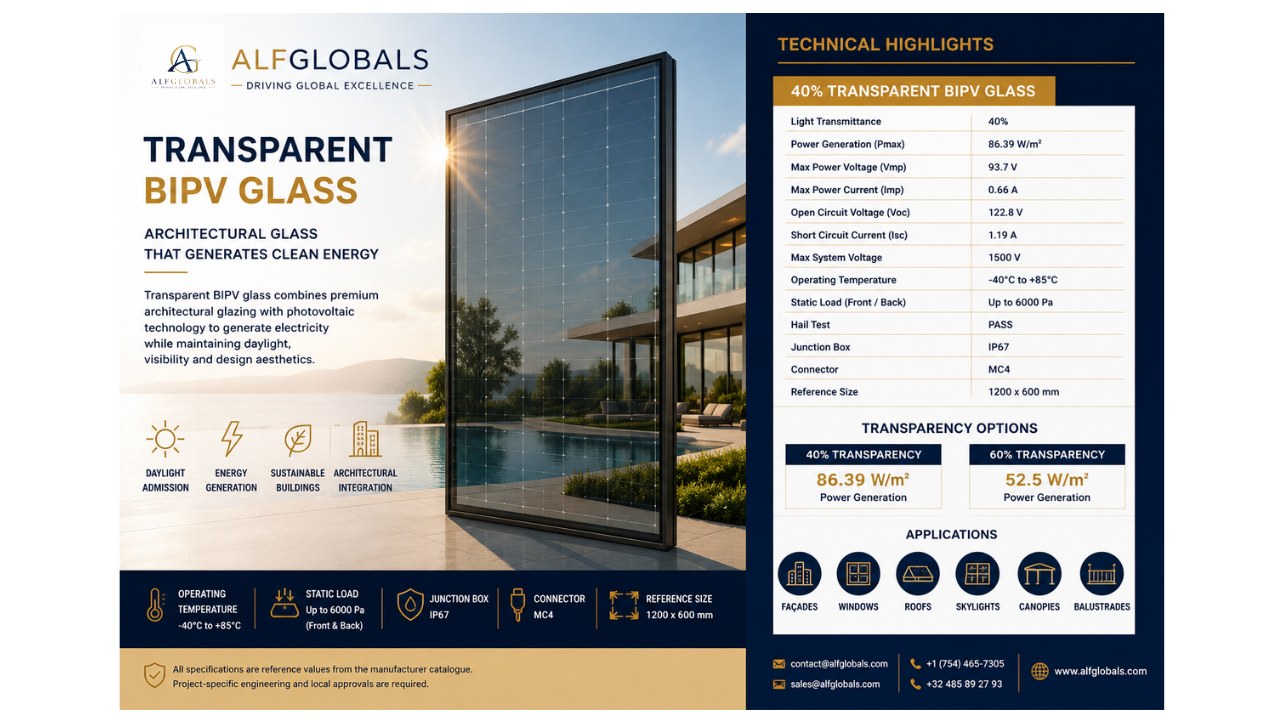

ALFGLOBALS Transparent BIPV Glass
Energy Glass / BIPV

Transparent BIPV Glass

Solar-powered architectural glazing combining transparency, daylight and photovoltaic electricity generation.

Transparency 40%
Power Density 86.39 W/m²
Reference Size 1200 × 600 mm
Maximum System Voltage 1500 V
Operating Range -40°C to +85°C
Static Load Reference Up to 6000 Pa
Reference technical values only. Project-specific electrical, structural and glazing verification is required.
Request a Quote

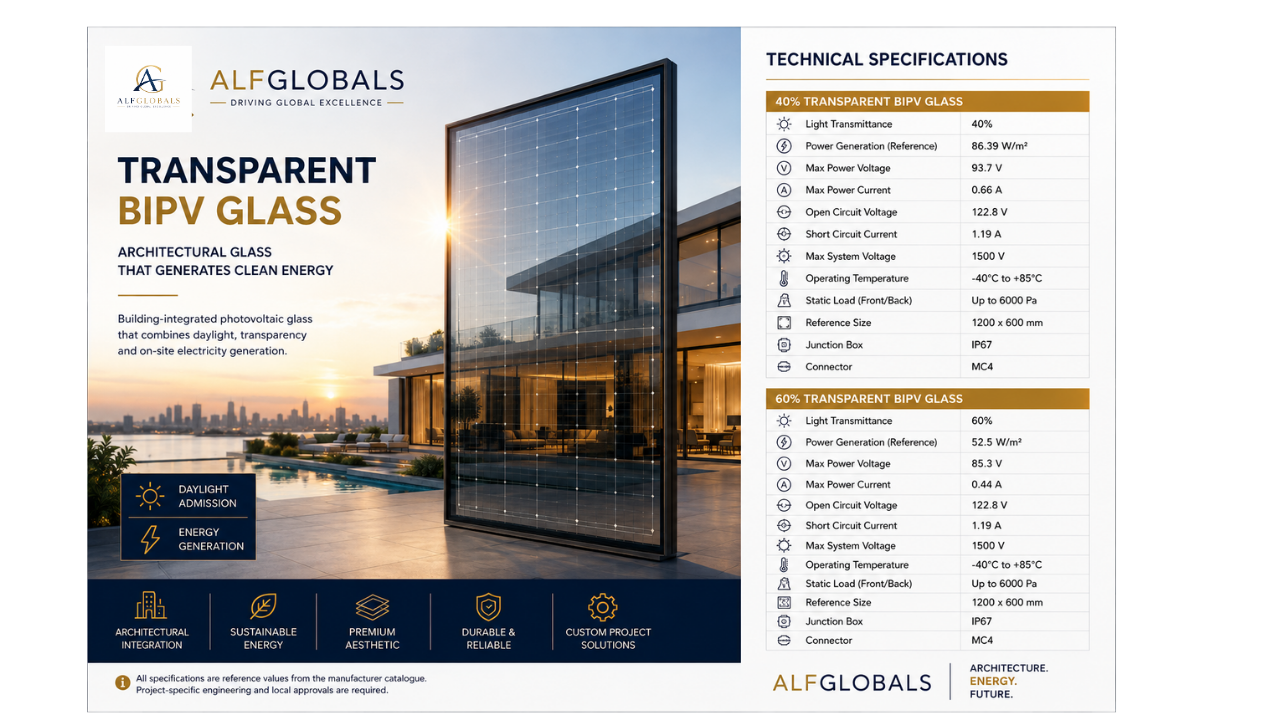

ALFGLOBALS 60 Percent Transparent BIPV Glass
Energy Glass / BIPV

60% Transparent BIPV Glass

Higher-transparency photovoltaic glazing for applications where daylight and visual openness have greater priority.

Transparency 60%
Power Density 52.5 W/m²
Maximum Rated Power 110 W
Maximum System Voltage 1500 V
Operating Range -40°C to +85°C
Static Load Reference Up to 6000 Pa
Higher transparency reduces the stated power density. Final selection depends on daylight, orientation and project energy targets.
Request a Quote

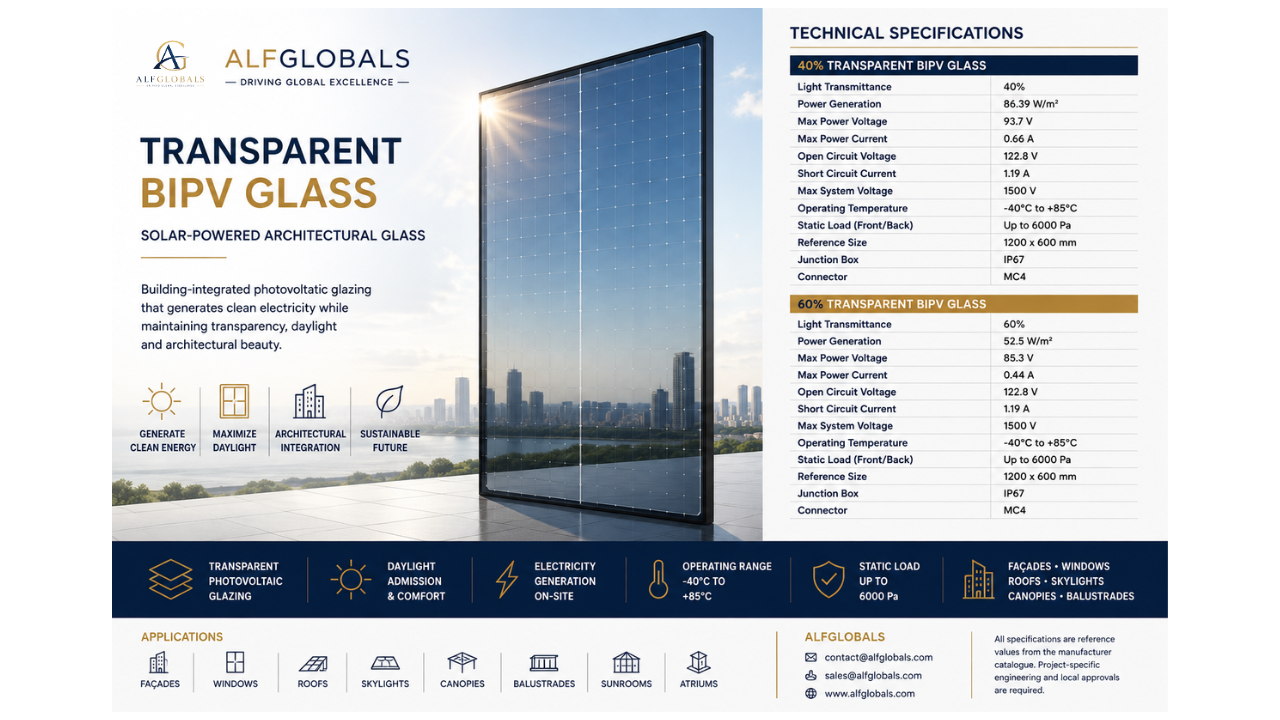

ALFGLOBALS BIPV Architectural Applications
BIPV Applications

BIPV Façade, Skylight & Canopy Solutions

Transparent photovoltaic glass for curtain walls, roof glazing, skylights, canopies, sunrooms and selected architectural features.

Applications Façades / Roofs / Skylights / Canopies
Transparency Options 40% / 60%
Power Density 52.5–86.39 W/m²
Reference Size 1200 × 600 mm
Junction Box IP67
Connector MC4
BIPV must be coordinated as both an architectural glazing system and an electrical-generation system. Project-specific engineering and local approvals are required.
Request a Quote
PREMIUM EUROPEAN SYSTEMS

Aluminium-Clad Timber Windows

European architectural window systems combining premium timber interiors with durable aluminium exterior protection and strong thermal performance.

ALFGLOBALS IDEALU 68
European System

IDEALU 68

Uw ≥ 0.89 W/m²K
Timber Profile 68 mm
Aluminium Shell 20 mm exterior
Exterior Design Semi-offset or offset sash
Glazing Double / Triple
Project-specific technical review required.
Request a Quote

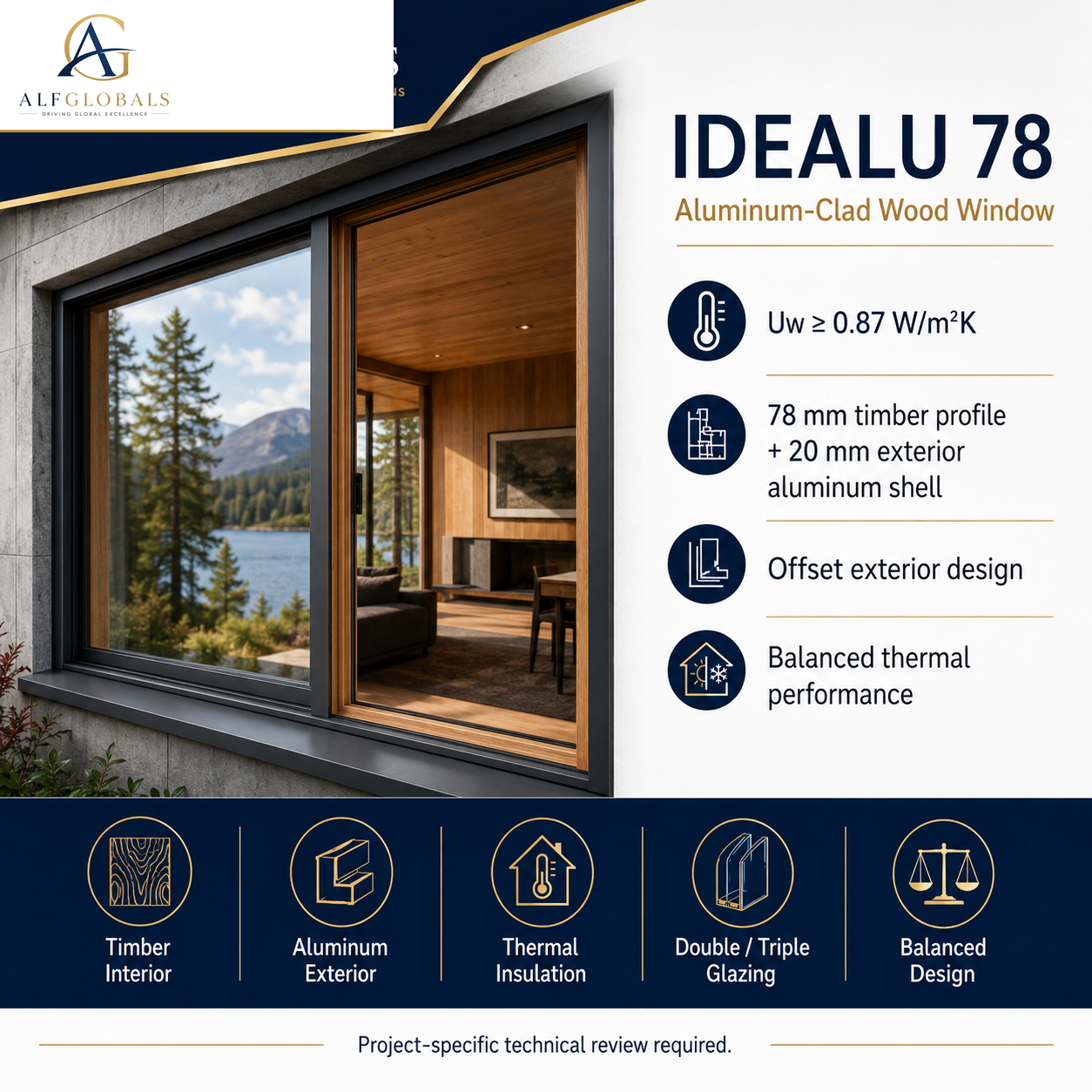

ALFGLOBALS IDEALU 78
European System

IDEALU 78

Uw ≥ 0.87 W/m²K
Timber Profile 78 mm
Aluminium Shell 20 mm exterior
Exterior Design Offset
Glazing Double / Triple
Performance Balanced thermal design
Project-specific technical review required.
Request a Quote

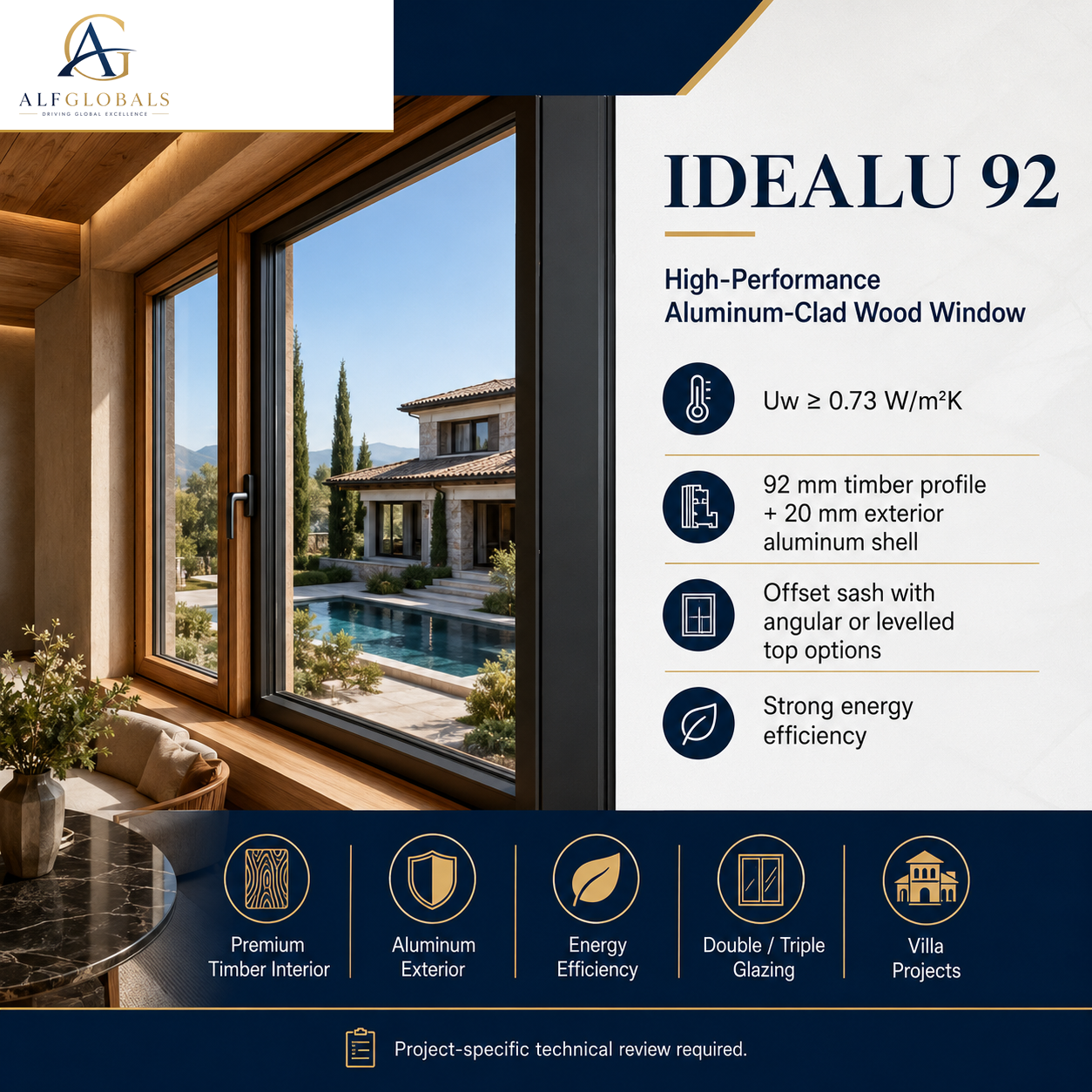

ALFGLOBALS IDEALU 92
European System

IDEALU 92

Uw ≥ 0.73 W/m²K
Timber Profile 92 mm
Aluminium Shell 20 mm exterior
Sash Offset
Options Angular or levelled top
Glazing Double / Triple
High-performance residential system. Project-specific technical review required.
Request a Quote
ALFGLOBALS ECO IDEALU
Energy Performance

ECO IDEALU

Uw ≥ 0.80 W/m²K
Timber Profile 76 mm
Aluminium Shell 20 mm exterior
Profile Low U-value design
Application Energy-focused residential projects
Final thermal and certification performance should be verified against the project-specific technical documentation.
Request a Quote

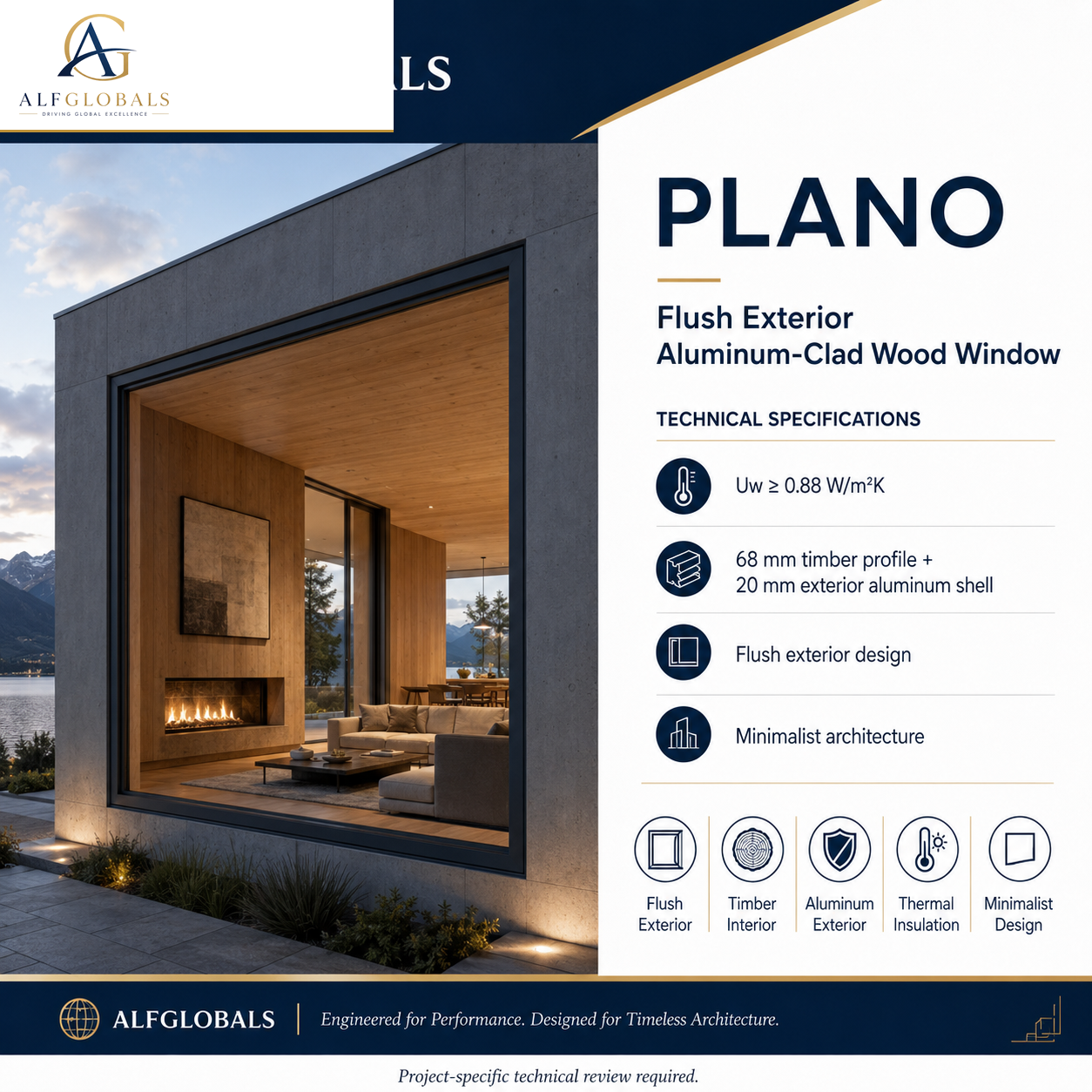

ALFGLOBALS PLANO
European System

PLANO

Uw ≥ 0.88 W/m²K
Timber Profile 68 mm
Aluminium Shell 20 mm exterior
Exterior Flush design
Architecture Minimalist
Project-specific technical review required.
Request a Quote

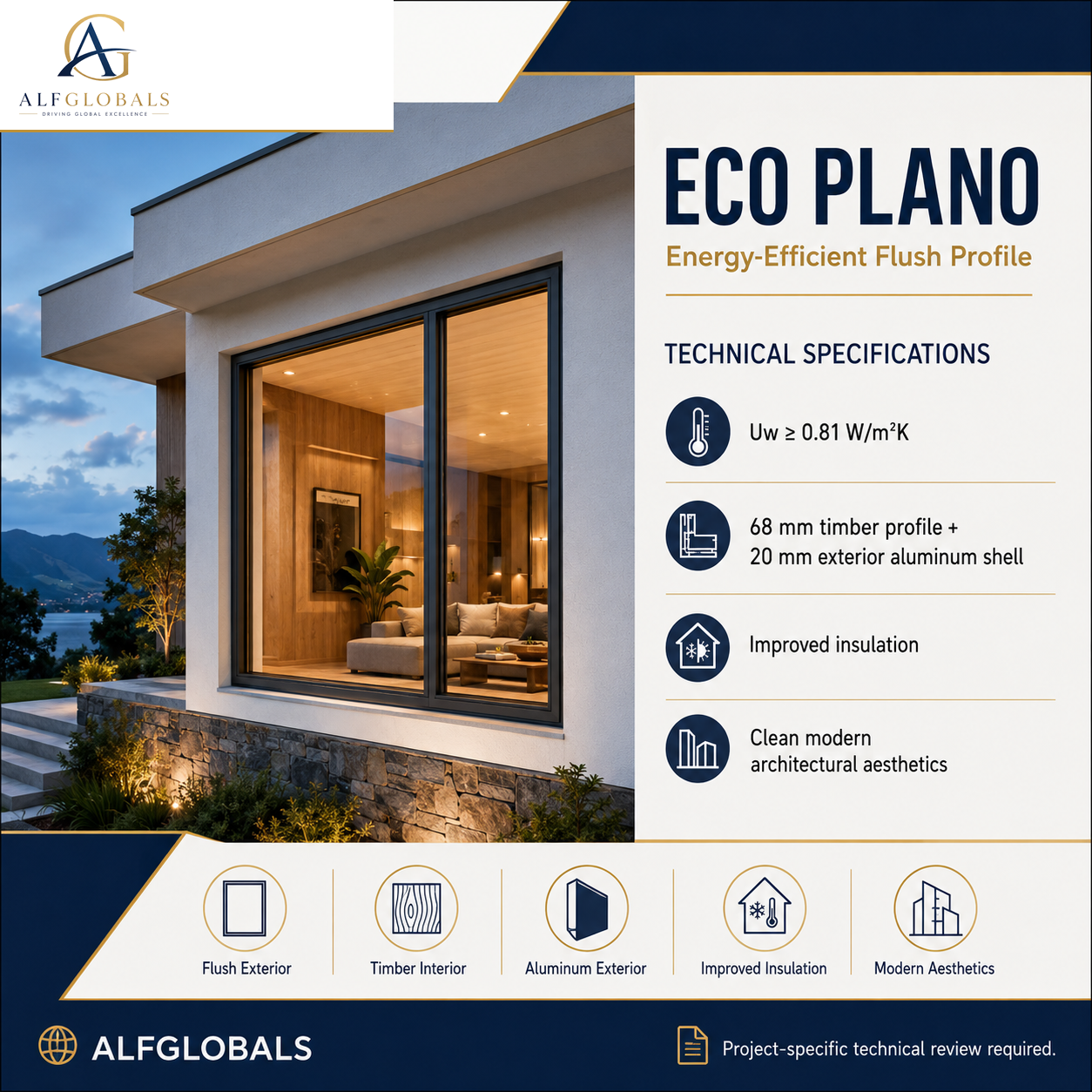

ALFGLOBALS ECO PLANO
Energy Performance

ECO PLANO

Uw ≥ 0.81 W/m²K
Timber Profile 68 mm
Aluminium Shell 20 mm exterior
Exterior Flush profile
Performance Improved insulation
Project-specific technical review required.
Request a Quote
ARCHITECTURAL OPENING TYPES

Specialty Window Systems

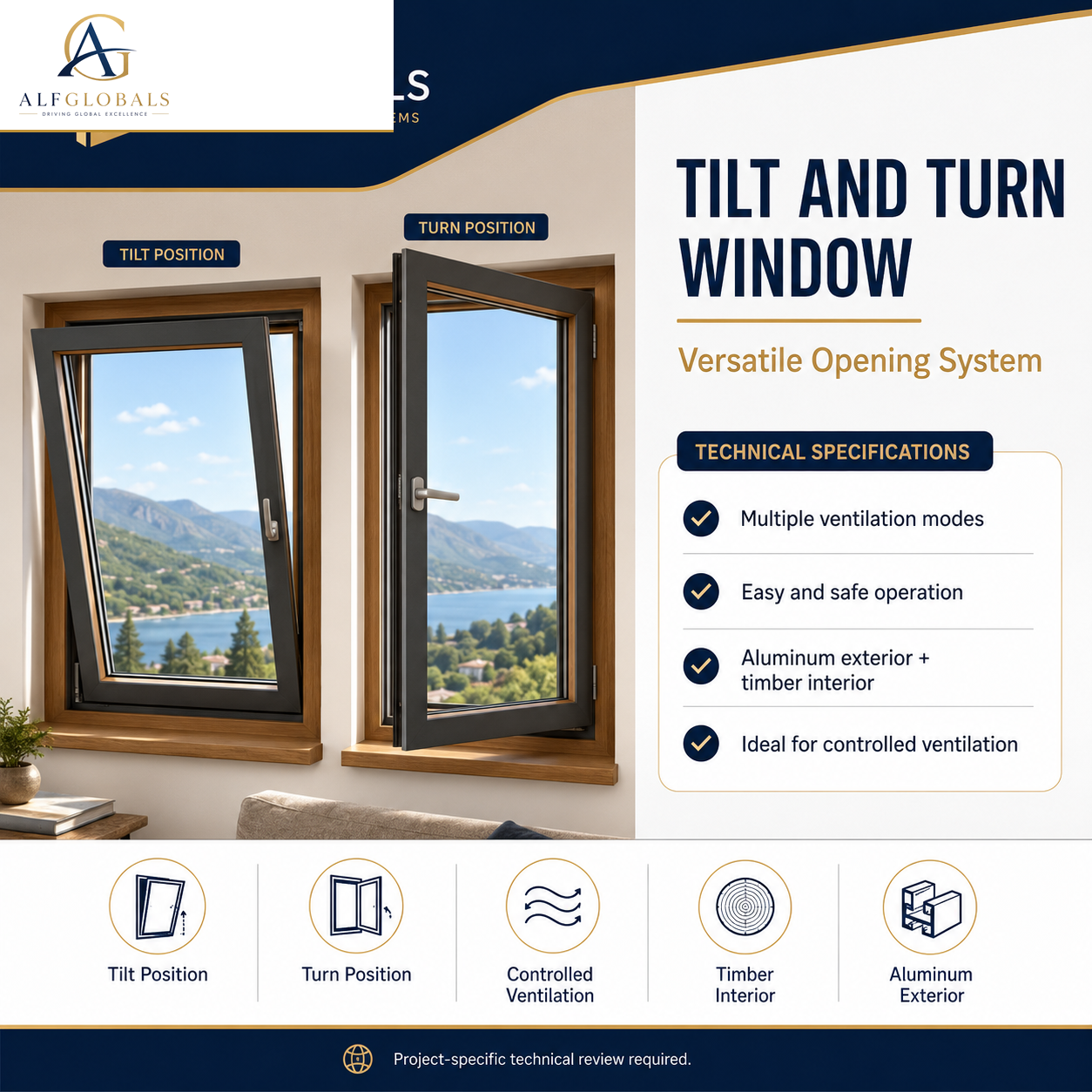

ALFGLOBALS Tilt and Turn Window
Opening System

Tilt & Turn Window

Operation Tilt + full turn
Ventilation Controlled ventilation modes
Interior Timber
Exterior Aluminium
Project-specific technical review required.
Request a Quote

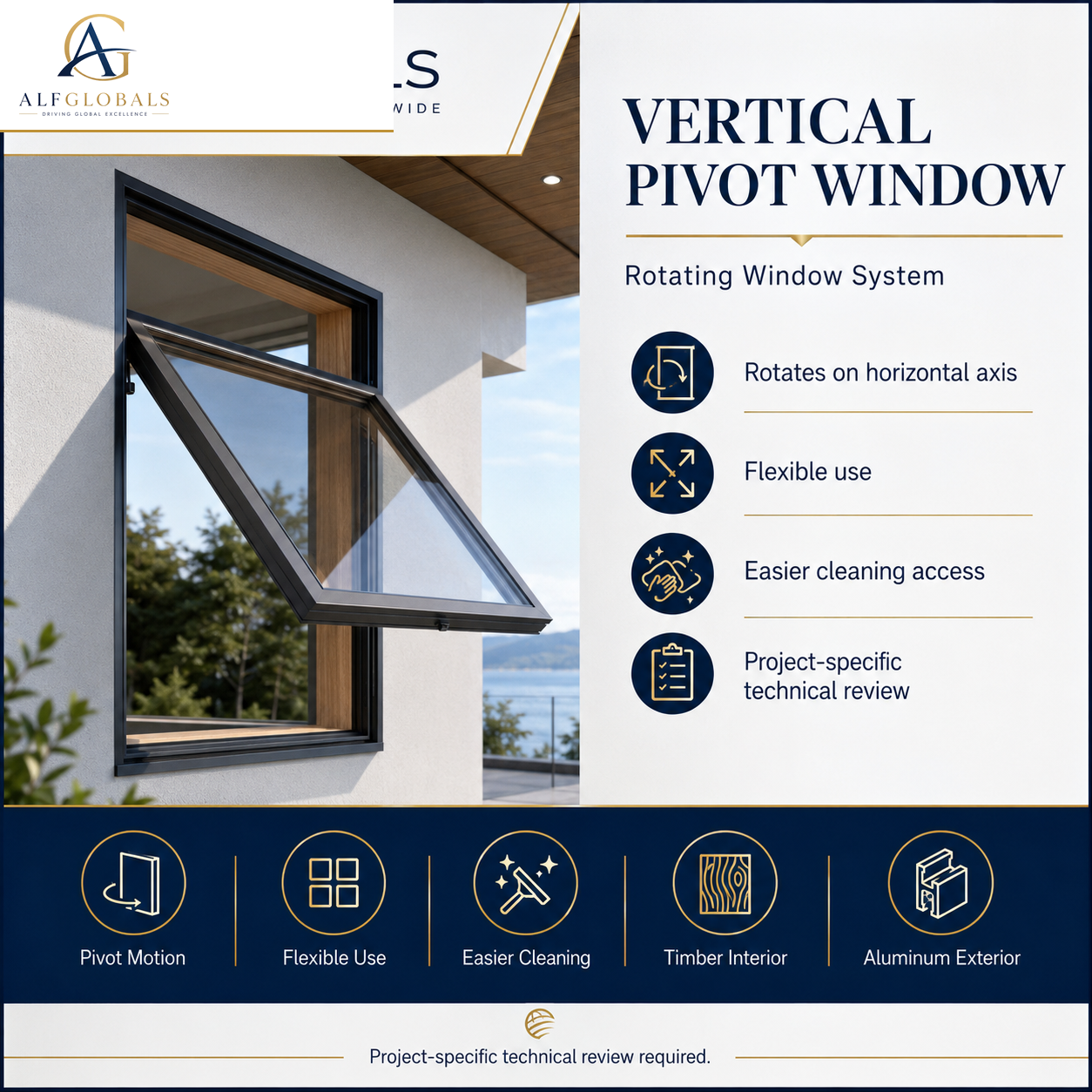

ALFGLOBALS Vertical Pivot Window
Specialty Window

Vertical Pivot Window

System Rotating window
Function Pivot motion
Benefit Flexible opening and easier cleaning access
Interior Timber
Exterior Aluminium
Project-specific technical review required.
Request a Quote

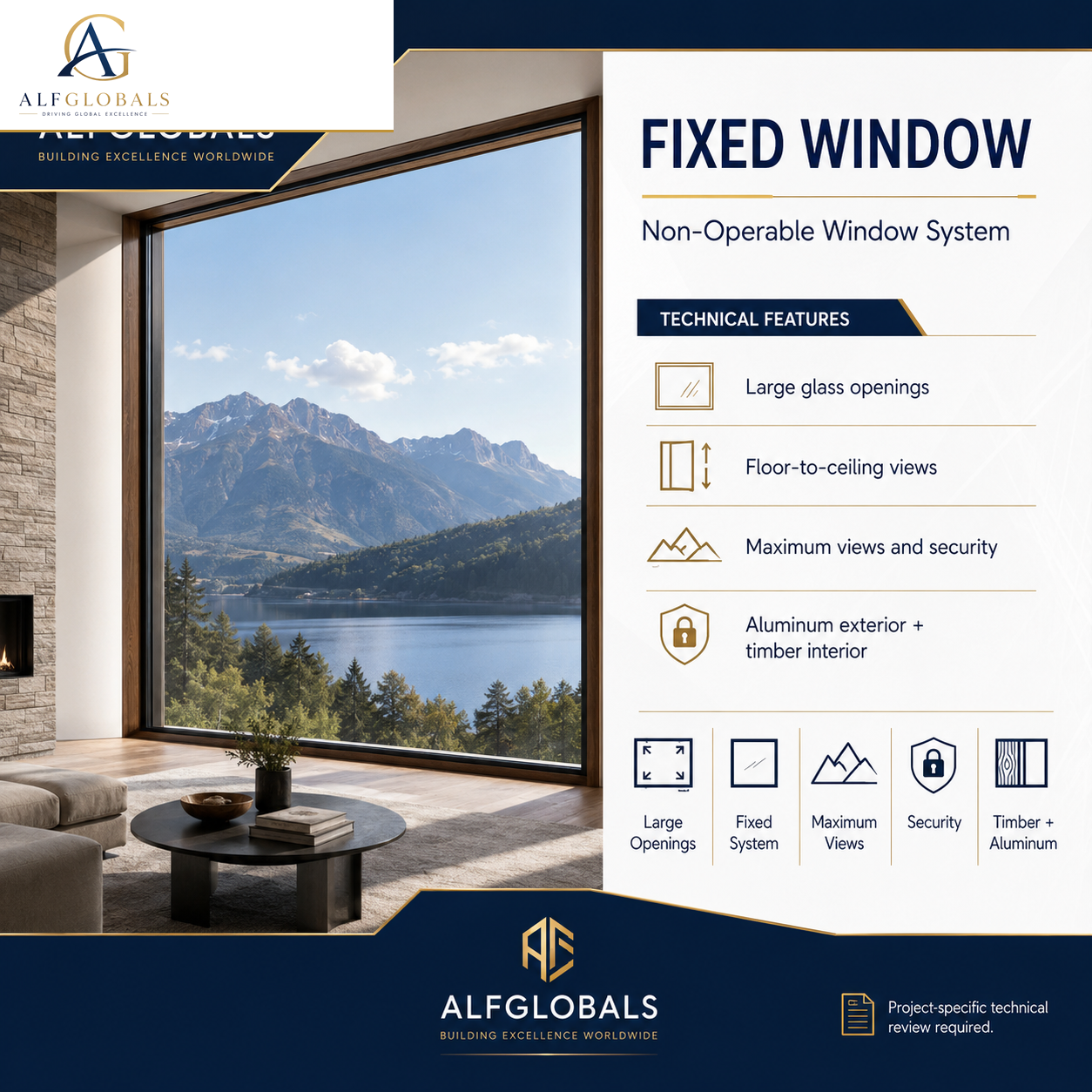

ALFGLOBALS Fixed Window
Architectural Window

Fixed Window

Operation Non-operable
Application Large glass openings
Design Floor-to-ceiling views
Interior Timber
Exterior Aluminium
Project-specific technical review required.
Request a Quote

Have a Project?

Send us your project location, architectural drawings, window and door schedule, opening dimensions, design pressures and glazing requirements. ALFGLOBALS can coordinate product selection, technical review and quotation.

Send Your Project
